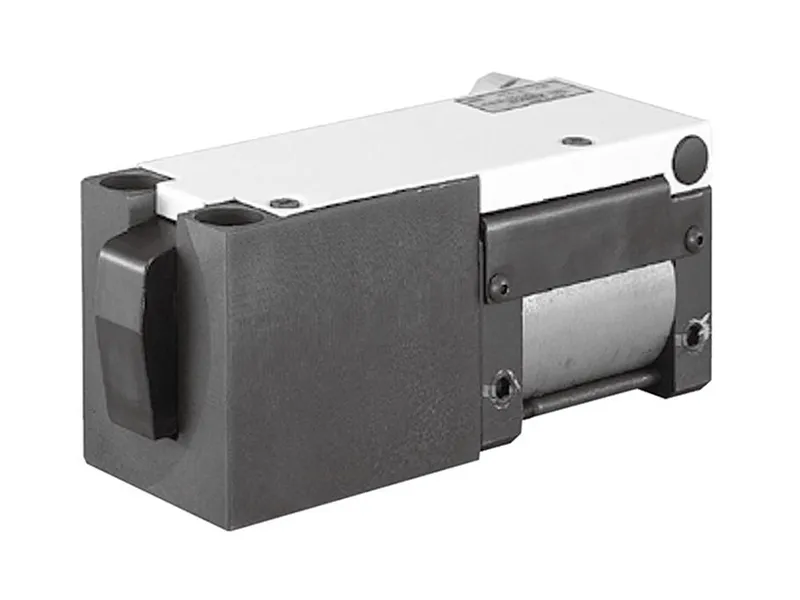

KOSMEK HC Die Clamps

KOSMEK HC Die Clamps

KOSMEK HC Die Clamps

The KOSMEK HC die clamp operation is reliable, ensuring a strong retention and clamping force, even without an air supply.

It features a wide application range, including longitudinal mold changing and horizontal mold changing. It is also suitable for horizontal injection press and vertical injection presses in a variety of specifications.

Request a Quote
Technical parameter

Optional type

Type
HC0102
HC0162
HC0252
HC0402
HC0632
HC1002
HC1602
HC2502
Die clamp capacity (kN) 9.8 15.7 24.5 39.2 61.7 98 157 245
Retention Air pressure 0. 39MPa 9.8 15.7 24.5 39.2 61.7 98 157 245
(kN) Air pressure OMPa 2.9 5.9 7.8 11.8 17.6 26.5 40.9 65
Clamping force (kN) Air pressure 0. 49MPa 7.8 13.7 19.6 31.4 48 75.5 124 190
Air pressure 0.39MPa 6.9 11.8 16.7 26.5 41.2 63.7 104 160
Air pressure OMPa 2 2.9 4.9 6.9 9.8 14.7 23.5 35
Max stroke   (mm) 2 2 2.1 2.3 2.6 2.8 3 3.3
Clamping stroke   (mm) 1 1 1 1.1 1.2 1.2 1.2 1.3
Reserved stroke 1 1 1.1 1.2 1.4 1.6 1.8 2
cylinder volume Clamping side 56 94 144 259 444 773 1334 2468
(cm3) Releasing side 52 88 135 244 416 729 1262 2346
Supply pressure Recommended pressure 0.49
(MPa) Min pressure 0.39
Operating temperature Below 70°C(over 70°C, please contact us)
Operating frequency Below 20 times/ day (or you need contact us)
Detailed machinery
Type ∫
HC0102 113
HC0162 119
HC0252 111
HC0402 156
HC0632 179
HC1002 167
HC1602 152
HC2502 190

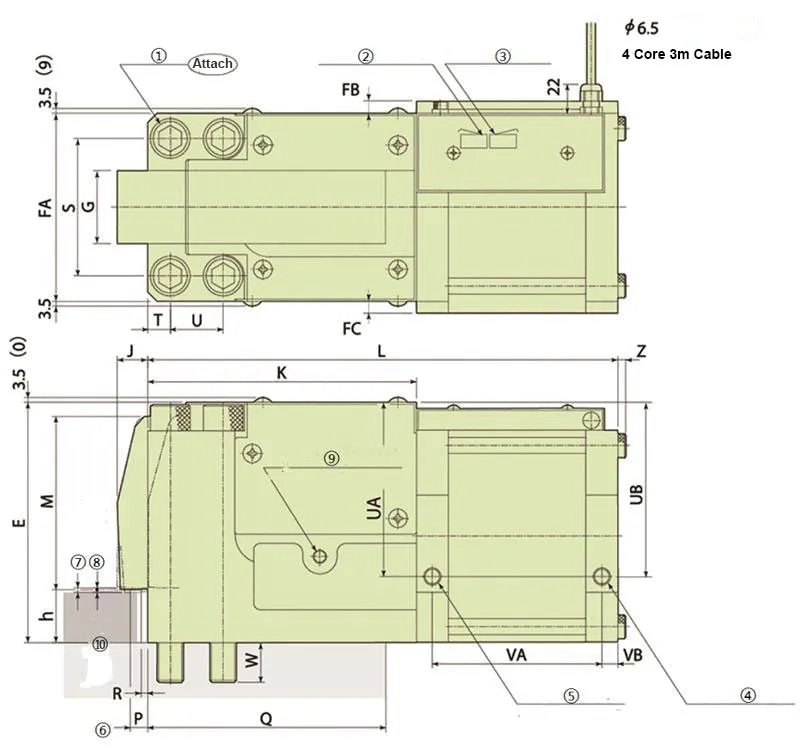

KOSMEK HC Die Clamps
  • Bolt
  • Clamp confirm switch
  • Releasing confirm switch
  • Air supply of clamping
  • Air supply of releasing
  • Clamping joint
  • Max stroke
  • Clamping stroke
  • Hanger bolt hole
  • Reserved stroke
Dimensions
Type E FA FB FC G J K L M P MIN.Q R S T U UA UB VA VB W X Z (Standard)h
HC0102 66 50 6 6 16 10.5 75.5 159 39.5 5.6 46 15 33 8 - 525 505 68.5 7.5 12 M8 - 20±0.3
HC0162 76 60 6 6 19 12 86 174 48 6.1 55 15 39 95 - 60 58 73 7.5 15 M10 - 20±0.3
HC0252 85.5 72 - - 25 13 100.5 195 48.5 7.4 84 2 50 11 - 70 70 70 11 22 M12 - 30±0.3
HC0402 1045 90 - - 30 15.5 117.5 217 66.5 8.8 61 2 62 14 - 845 845 74.5 11.5 27 M16 - 30±0.3
HC0632 128 110 - - 36 17.5 139.5 254 77 9.9 75 3 76 17 - 99 99 89 11.5 33 M20 - 35±0.3
HC1002 150 135 9.5 - 48 20 163.5 287 100.5 11 120 3 95 20 - 109.5 1095 1065 8.5 36 M24 - 40±0.3
HC1602 182 142 9.5 8.5 55 23 203 355 132 13 203 5 104 17 40 131.5 131*5 128 12 30 M20 6 40±0.3
HC2502 227 170 10 10 65 26 253 435 125.5 17 245 5 130 20 50 167 167 158 12 37 M24 10 50±0.3
Features
  • The power source is normal compressed air, so users do not need to worry about oil leakage that will dirty up the clamping machine and surrounding environment. This also means there is no need to worry about operating oil stocks or fire hazards.
  • All circuits use air pressure piping, thus making piping operations more convenient.
  • There is no oil leakage during pipe disassembly, which makes equipment maintenance easier.
  • Compared to the KOSMEK GWA die clamps, it has the same installation distance between holes, giving the two series an excellent compatibility.
  • Compared to mold changes by oil pressure, this HB die clamp features a lower operating pressure, ensuring a higher durability under high temperatures.
  • The price of the HB die clamps is lower than oil pressure die clamps during long term usage.
