High Precision Spotting Press for 3-Color Mould

High Precision Spotting Press for 3-Color Mould

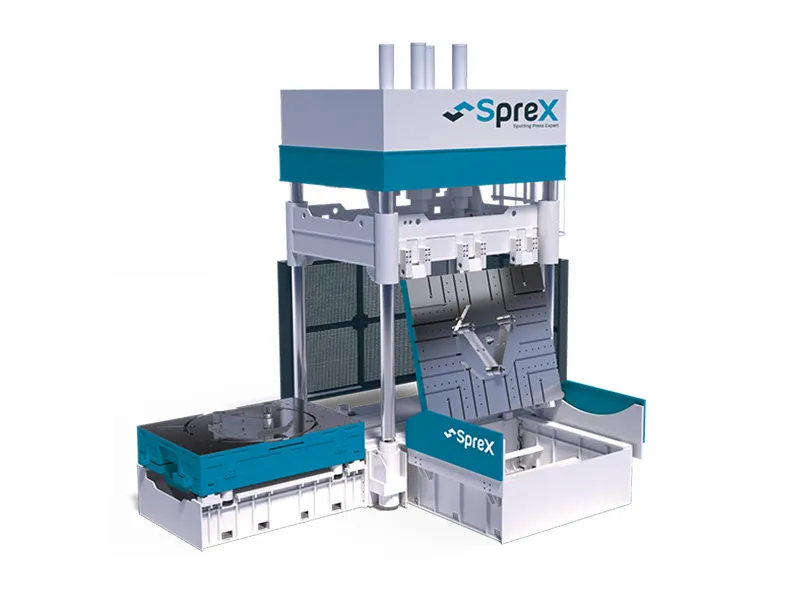

The overall structure of the high precision spotting press for 3-color molds is similar to the JM series die spotting press, but its defining trait is the turnable device, which realizes the station handover function during the bedding-in procedure of the mold, so users can directly make 2-color molds or 3-color molds.

It is mainly used for the production of auto light molds. It can also be used for the production of complex molds which contain multiple parts.

Request a Quote
Type selection

According to different pressure capacities, we provide 200T, 300T and 350T models. The length of the mix working table is 3m, and the width is 2m. It can be widely used for various sized molds.

SX200JM-TUS
  • Pressing capacity: 200 ton
  • Mold open capacity: 45 ton
  • Overturn capacity: 10 ton
  • Max. mold weight: 20 ton
SX300JM-TUS
  • Pressing capacity: 300 ton
  • Mold open capacity: 56 ton
  • Overturn capacity: 18 ton
  • Max. mold weight: 36 ton
SX350JM-TUS
  • Pressing capacity: 350 ton
  • Mold open capacity: 70 ton
  • Overturn capacity: 25 ton
  • Max. mold weight: 50 ton

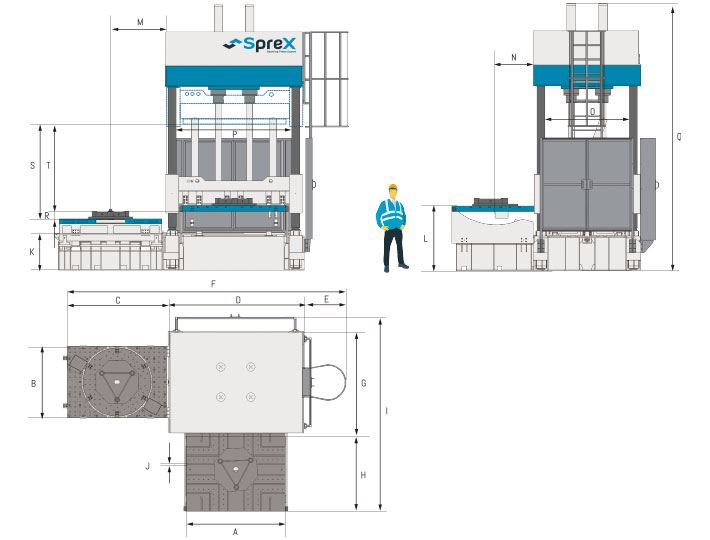

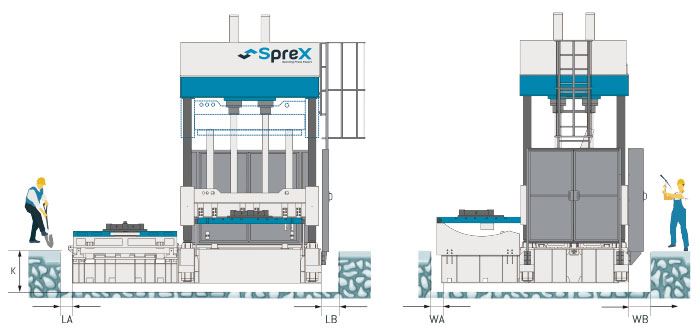

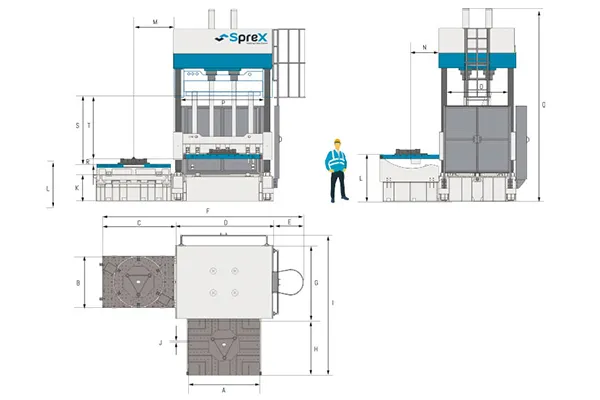

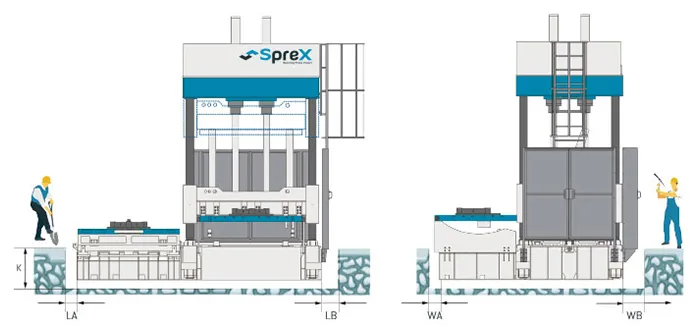

Installation Dimensions
High Precision Spotting Press for 3-Color Mould
High Precision Spotting Press for 3-Color Mould
Technical parameter
Items Model   SX200JM-TUS SX300JM-TUS SX350JM-TUS
pressure capacity T 200 300 350
Open capacity T 45 56 70
Overturn capacity T 10 18 25
Rotary table diameter mm 1420 1720 1920
Dimension of work bench mm 1800×1500 2200×1800 2800×2000
Minimum distance between two workbenches mm 200 200 200
Maximum distance between two workbenches mm 1900 2300 2300
Shift-out stroke of lower workbench mm 2180 2700 3365
Ejection stroke mm 300 300 300
Overturn angle of upper workbench ° 180 180 180
Maximum weight of mold T 20 36 36
Min mold size(length×width) mm 540×540 650×650 850×850
External dimension (length×width×high) mm 4185×1770×3690 6000×5200×7140 7200×5500×7500
Electrical power kW 22 30 37
Weight T 32 55 82

Note: The technical parameters are subject to change without prior notice.

Features
  • Designed with a reliable guide pillar structure, ensuring higher precision during high-pressure mold closure and convenient platen parallelism adjustment.
  • Equipped with graphite copper sleeve guides, enabling oil-free and self-lubricating operation for a cleaner and more environmentally friendly machine.
  • Incorporates practical and reliable fault detection, alarm systems, and low-pressure mold protection function for enhanced safety and performance.
  • Equipped with a lower worktable featuring high-precision positioning and lifting devices, further improving operational efficiency.
  • Features four mold clamping cylinders, ensuring even force distribution during high-pressure mold closure and minimizing deformation coefficient.
  • Utilizes German-made SIKO magnetic band for precise detection of the moving platen's position, guaranteeing accurate results.
  • Includes mechanical safety protection devices to safeguard both your valuable molds and the machine itself.
  • Enhanced functionality with the turnable device enables seamless station handover during the bedding-in procedure, facilitating the creation of 2-color or 3-color molds.
Easy operation

In order to help users realize the production of multicolor molds, the lower working station is designed with a 360° rotatory turntable, and there will be a toaling hole every 60° on the turntable edge. By the positioning of different angle of the mold, the mold can be divided into multiple parts.

For example, users need to divide the mold into 3 parts if they want to produce 3-color molds, then they need only position the turntable 3 times, and the angle between every two parts is 120°.

Optional device
Servo drive system

Driving by optional servo motor can help to reduce the oil temperature and energy consumption of the die spotting press.
