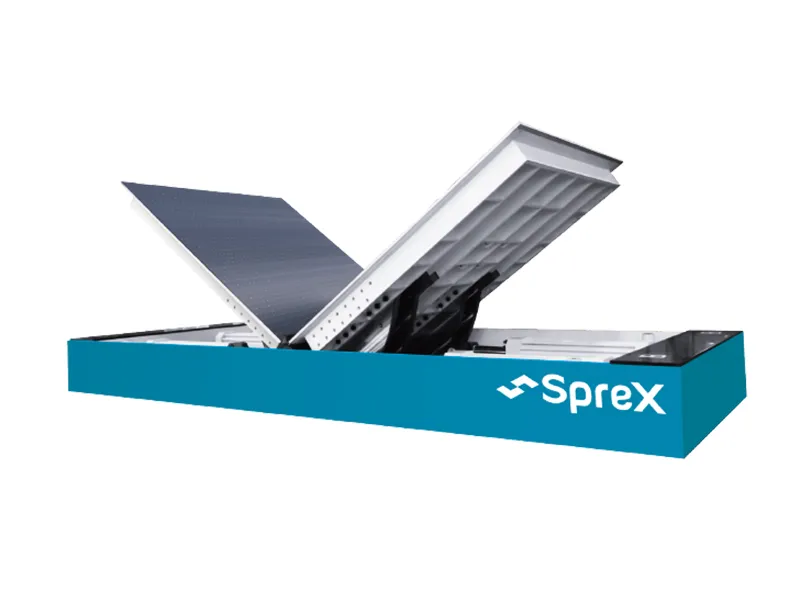

180 Degree Mold Flipper / Mold Rotator

180 Degree Mold Flipper / Mold Rotator

This 180 degree turning mold reversing machine can automatically finish what isn't done using the 90 degree turning mold reversing, all while reducing labor intensity and costs, and improving the mold reversing efficiency.

In order to save floor space, we specially designed this mold reversal equipment. Users simply need to dig a melt pit before installation, thus ensuring the ground is level after installation. It is designed to be especially useful for users with limited space.

Request a Quote

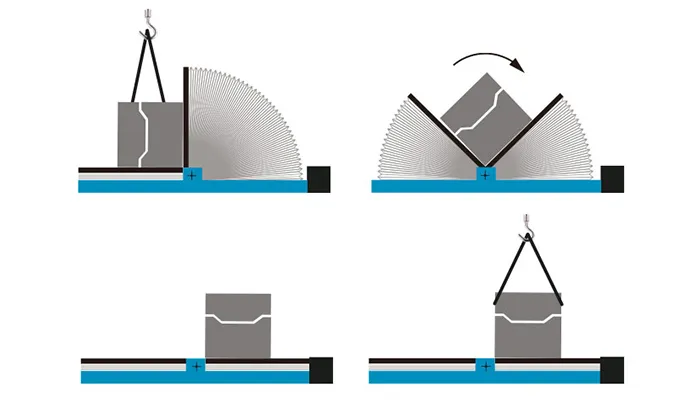

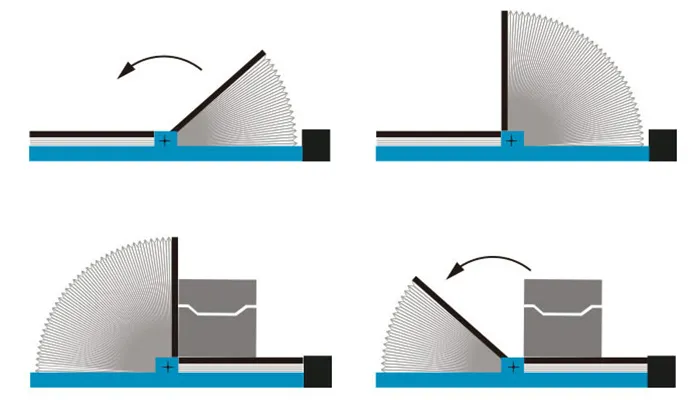

Mold reversing process
  • 180 Degree Mold Flipper / Mold Rotator
  • 180 Degree Mold Flipper / Mold Rotator
Type selection
Items Model
FJR-10
FJR-20
FJR-30
FJR-40
FJR-50
FJR-70
Overturn capacity T 10 15 20 30 50 70
Table area mm 1400×1300 1600×1500 2000×1600 2200×1800 2500×2000 3200×3200
Table height mm 740 740 870 980 1170 1530
Center height mm 490 490 610 670 720 1180
External dimension (length×width×high) mm 1910×1500 ×2040 2157×1600 ×2240 2360×2100 ×2470 2680×2300 ×2780 3000×2600 ×3170 4800×3300 ×4745
Electrical power kW 4 5.5 7.5 11 22 22
Weight T 3.2 3.8 6.5 9.5 15.5 25.3

Note: The technical parameters are subject to change without prior notice.

Features
  • Easy operation, making mold reversing a hassle-free task for your operators.
  • Optimized structural design, providing increased stability and durability to ensure reliable performance.
  • Low space occupancy, allowing you to maximize the utilization of your factory space.
  • Built on our extensive experience of over 15 years in the development and production of mold flippers, guaranteeing quality and industry expertise.
