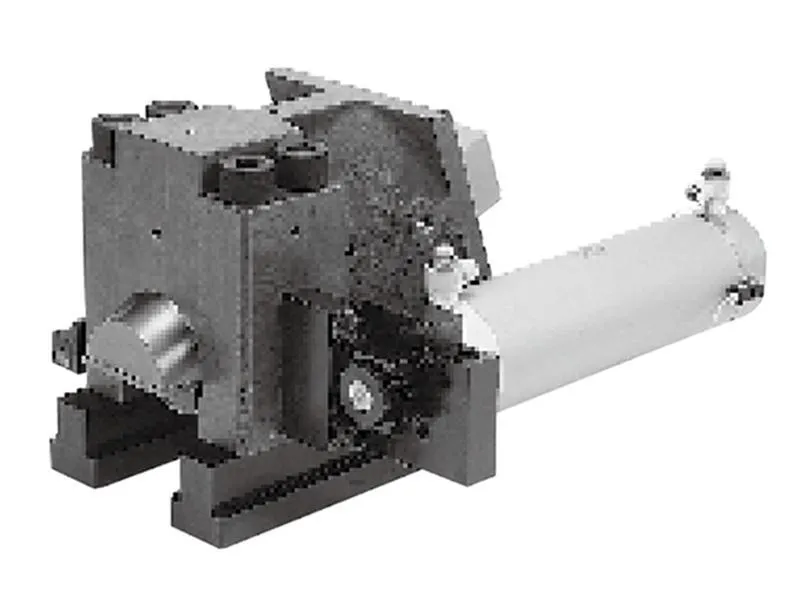

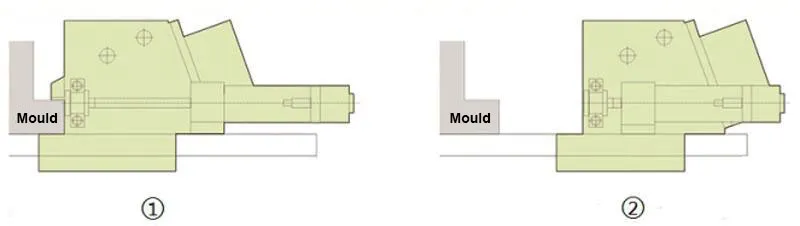

The KOSMEK GLA die clamps are an improved version of the KOSMEK GW die clamps. They are used for processing molds in various sizes, and carry out remote control of the die clamp movement and clamping processes.
This series of die clamps is used for the movement and clamping of plastic injection molds, stamping dies, die casting molds, glass molds, rubber molds, metallurgy molds and more.
Optional type
| Type | Die clamp capacity | Clamping force 13.7MPa | Sliding stroke | Driving air pressure | Min T-slot size | Operating temperature | Operating frequency |
| (kN) | (kN) | (mm) | (MPa) | ||||
GLA1600 | 157 | 157 | 50~300 | 0.39~0.49 | 28 | 0~70°C | Below 20 times/day (or you need contact us) |
GLA2500 | 245 | 245 | 32 | ||||
GLA4000 | 392 | 392 | 42 | ||||
GLA5000 | 490 | 392 | 42 |

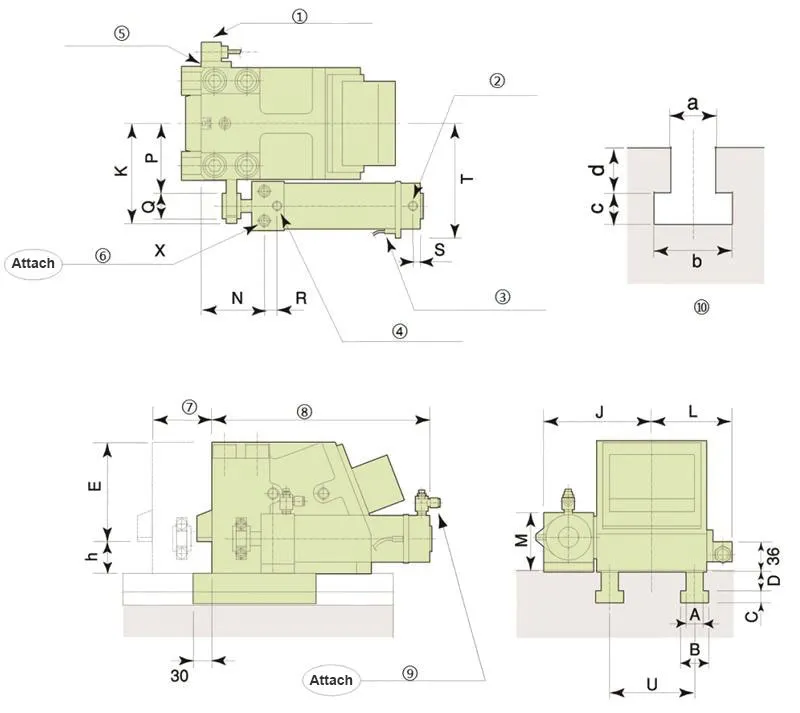

| Type | E | G | J | K | L | M | N | P | Q | R | S | T | U | X | Rc | |
| Bolt installation | Threaded hole processing | |||||||||||||||
| GLA1600 | 128 | 178 | 139 | 134 | 108 | 80.5 | 85 | 86 | 41 | 16 | 14 | 152.5 | 104 | M12X85 | M12 depth 24 | 1/4 |
| GLA2500 | 155 | 192 | 166.5 | 155.5 | 124 | 92.6 | 95 | 105 | 46 | 20 | 14 | 181 | 130 | M16X100 | M16 depth 32 | |
| GLA4000 | 195 | 228.5 | 273 | 222.5 | 146.5 | 149 | 100 | 133 | 120 | 37.5 | 19 | 260 | 162 | M20X160 | M20 depth 40 | 1/2 |
| GLA5000 | 195 | 228.5 | 273 | 222.5 | 146,5 | 149 | 100 | 133 | 120 | 37.5 | 19 | 260 | 162 | M20X160 | M20 depth 40 | |
Note: A, B, C, D is decided by T-slot size.
Please mark the T-slot size (a, b, c, d) and clamps thickness (h).
The tolerance value of the T-slot dimension must be less than ±0.2mm.
