90 Degree Mold Flipper / Mold Rotator

90 Degree Mold Flipper / Mold Rotator

The 90 degree turning mold reversing machine can be installed directly on the ground, thus allowing plant employees to carry out 90 degree turns of molds in an easy, quick manner. It is especially suitable for medium and large molds. Compared to a traditional crane lifting method, this machine has a higher mold reversal efficiency, thus reducing operator intensity, and prevents the factory floor from becoming damaged due to heavy molds.

Request a Quote

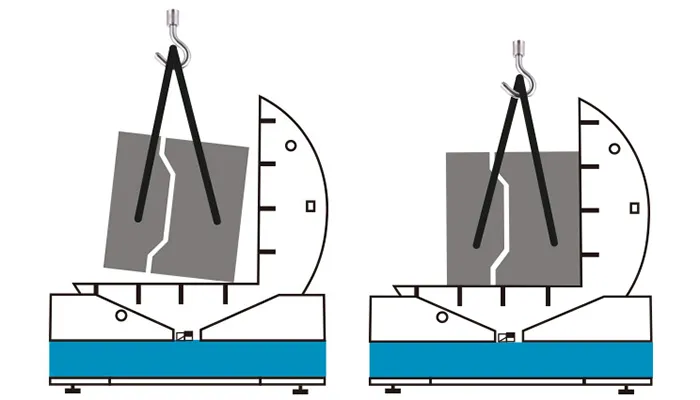

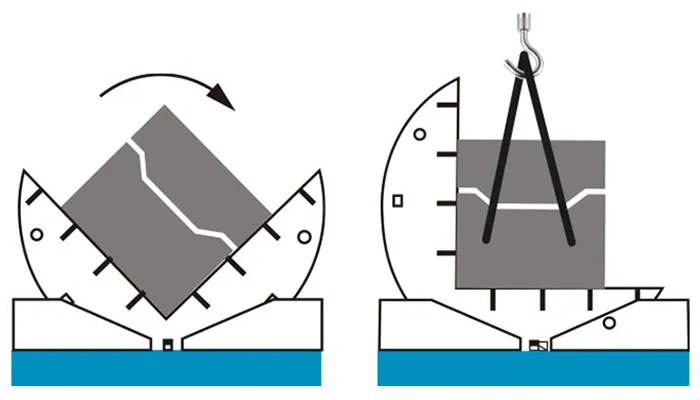

Mold reversing process
  • 90 Degree Mold Flipper / Mold Rotator
  • 90 Degree Mold Flipper / Mold Rotator
Type selection
SXF-10
  • Overturn capacity: 10 ton
  • Table size: 1400×1300 mm
  • Table height: 740 mm
  • Center height: 490 mm
SXF-15
  • Overturn capacity: 15 ton
  • Table size: 1600×1500 mm
  • Table height: 740 mm
  • Center height: 490 mm
SXF-20
  • Overturn capacity: 20 ton
  • Table size: 2000×1600 mm
  • Table height: 870 mm
  • Center height: 610mm
SXF-30
  • Overturn capacity: 30 ton
  • Table size: 2200×1800 mm
  • Table height: 980 mm
  • Center height: 670mm
SXF-50
  • Overturn capacity: 50 ton
  • Table size: 2500×2000 mm
  • Table height: 1170 mm
  • Center height: 720 mm
SXF-70
  • Overturn capacity: 70 ton
  • Table size: 3200×3200 mm
  • Table height: 1530 mm
  • Center height: 1180 mm
Items Model   SXF-10 SXF-15 SXF-20 SXF-30 SXF-50 SXF-70
Overturn capacity T 10 15 20 30 50 70
Table area mm 1400×1300 1600×1500 2000×1600 2200×1800 2500×2000 3200×3200
Table height mm 740 740 870 980 1170 1530
Center height mm 490 490 610 670 720 1180
External dimension (length×width×high) mm 1910×1500 ×2040 2157×1600 ×2240 2360×2100 ×2470 2680×2300 ×2780 3000×2600 ×3170 4800×3300 ×4745
Electrical power kW 4 5.5 7.5 11 22 22
Weight T 3.2 3.8 6.5 9.5 15.5 25.3

Note: The technical parameters are subject to change without prior notice.

Features
  • Easy operation, ensuring minimal effort and training.
  • Built on our extensive experience of over 15 years in the development and production of mold flippers.
  • An economical and practical solution.
Indian customer VALEO using scene
