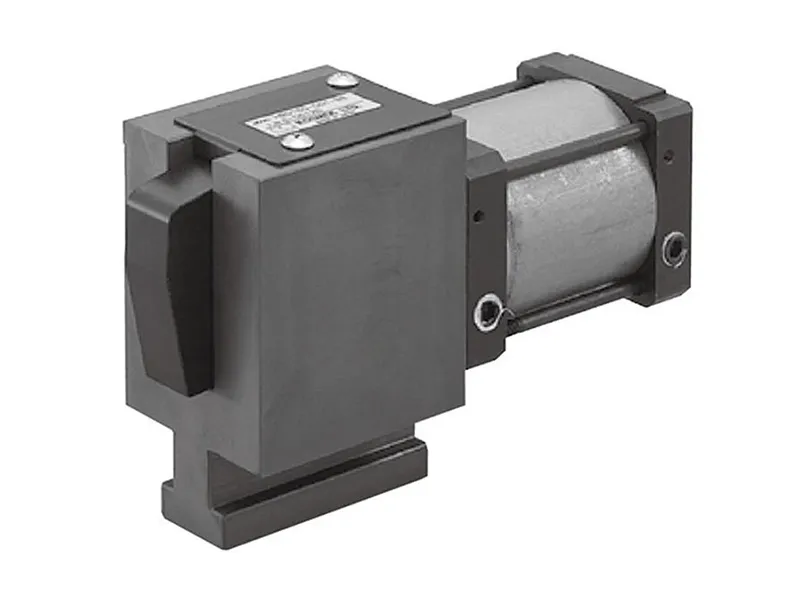

The KOSMEK HB die clamps are a compact clamp with a force amplifier inside. The mold can be moved on the T-slot through manual operation, and will have a large clamping force using only air pressure, thus maintaining the clamping force and retention force, even when there is no air supply.

Request a Quote
Technical parameter

Optional type

Type
HB0101
HB0161
HB0251
HB0401
HB0631
HB1001
HB1601
Die clamp capacity (kN) 9.8 15.7 24.5 39.2 61.7 98 157
Retention Pressure 0. 39MPa 9.8 15.7 24.5 39.2 61.7 98 157
(kN) Pressure OMPa 2.9 5.9 8.8 13.7 20.6 30.8 50.3
Clamping force (kN) Pressure 0. 49MPa 7.8 13.7 20.6 32.3 50 77.4 127
Pressure 0.39MPa 6.9 11.8 17.6 27.4 43.1 66 108
Pressure OMPa 2 3.9 4.9 7.8 11.8 17.7 28.9
Max stroke   (mm) 3 3 32 3.6 4 4.5 5
Clamping stroke   (mm) 1 1 1 1.1 1.2 1.2 1.2
Reserved stroke 2 2 2.2 2.5 2.8 33 3.8
cylinder volume Clamping side 56 94 144 259 444 773 1334
(cm3) Releasing side 52 88 135 244 416 729 1262
Supply pressure Recommended pressure 0.49
(MPa) Min pressure 0.39
Operating temperature Below 70°C(over 70°C, please contact us)
Operating frequency Below 20 times/ day (or you need contact us)
Detailed machinery
KOSMEK HB Die Clamps

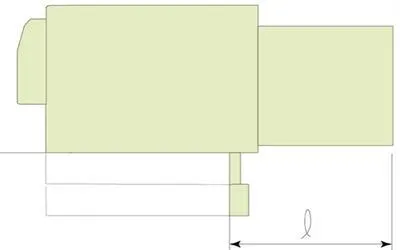

Type ∫
HB0101 108
HB0161 113
HB0251 122.5
HB0401 127.5
HB0631 124.5
HB1001 133.5
HB1601 167
KOSMEK HB Die Clamps
  • Air supply for clamping
  • Air supply for releasing
  • Guide sleeve
  • Hanger bolt hole
  • Clamping point
  • Reserved stroke
  • Max stroke
  • Clamping stroke

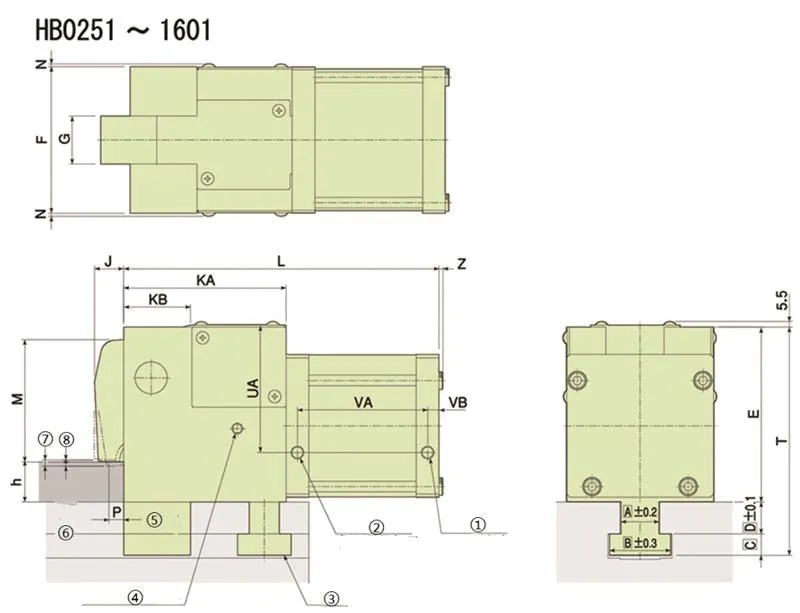

Dimensions
Type E F G J KA KB L M (h) N P UA VA VB X Y Z MIN.a MIN.c MIN.h MAx.h
HB0101 69 50 16 14 65 - 148.5 27 (36) -47 (15) 2.5 7 27.5 60 10.5 - Rc1/8 - 10 6.5 15±0.3 35±0.3
HB0161 77 60 19 16 74 - 162 30 (40) -55 (15) 2.5 7.5 26.5 64 11 - Rc1/8 - 12 8 15±0.3 40±0.3
HB0251 87.5 72 25 17 87 - 181.5 40.5 (40) -60.5 (20) 2.5 8.7 30.5 70 11 - Rc1/8 - 14 9.5 20±0.3 40±0.3
HB0401 106.5 90 30 20 101.5 - 201 53.5 (45) -78.5 (20) 2.5 10 36 74.5 11.5 - Rc1/8 - 18 12 20±0.3 45±0.3
HB0631 131 110 36 22 121.5 - 236 65 (20) -85 (30) 2.5 11 51 89 11.5 M8 Rc1/8 - 22 14 30±0.3 50±0.3
HB1001 154 135 48 26 143 60 266.5 84 (60) -109 (35) 3.5 13 112.5 106.5 8.5 M8 Rc1/8 - 24 16.5 35±0.3 60±0.3
HB1601 186 160 55 30 179.5 75 331.5 106 (70) -136 (40) 3.5 17 134 128 12 M10 Rc1/4 6 28 20 40±0.3 70±0.3
Features
  • The power source is normal compressed air, so users do not need to worry about oil leakage that will dirty up the clamping machine and surrounding environment. This also means there is no need to worry about operating oil stocks or fire hazards.
  • All circuits use air pressure piping, thus making piping operations more convenient.
  • There is no oil leakage during pipe disassembly, which makes equipment maintenance easier.
  • Compared to the KOSMEK GWA die clamps, it has the same installation distance between holes, giving the two series an excellent compatibility.
  • Compared to mold changes by oil pressure, this HB die clamp features a lower operating pressure, ensuring a higher durability under high temperatures.
  • The price of the HB die clamps is lower than oil pressure die clamps during long term usage.
