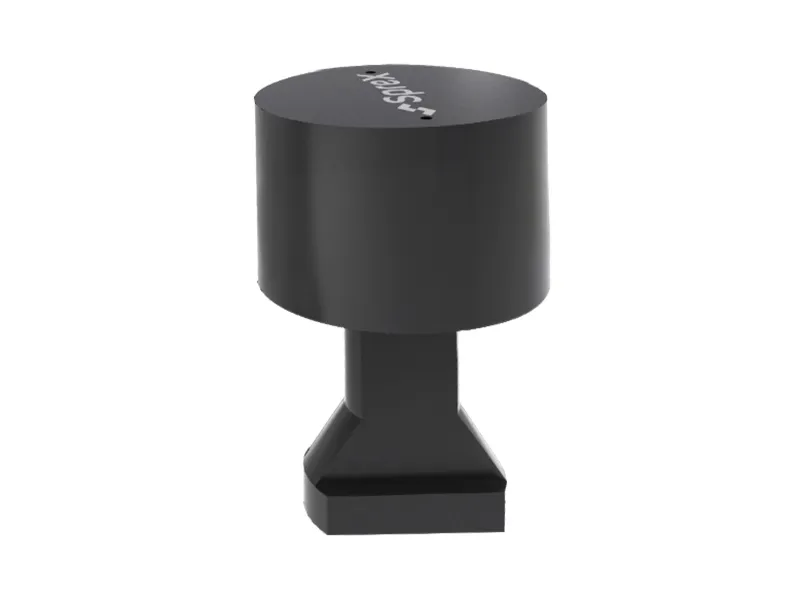

Hydraulic Clamp System, FY Series

Hydraulic Clamp System, FY Series

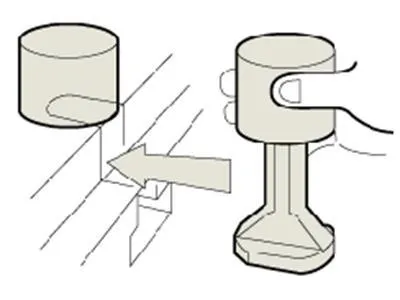

The FY series hydraulic clamp system is primarily used for clamping molds with a T-slot clamp, thus reducing the time needed to change molds. Compared to other hydraulic clamp systems, work support is its most attractive feature, as it saves a significant amount of installation space.

The FY series hydraulic clamp systems are more often used for stamping molds, with matched equipment including a stamping machine, oil hydraulic machine, and more.

Request a Quote
Technical parameter
  • Hydraulic Clamp System, FY Series
  • Hydraulic Clamp System, FY Series

Optional type

FY2
  • Clamping force (25MP): 20 kn
  • Stroke X: 7 mm
  • Clamping stroke Y: 3 mm
  • Reserved secure stroke Z: 4 mm
FY4
  • Clamping force (25MP): 40 kn
  • Stroke X: 7 mm
  • Clamping stroke Y: 3 mm
  • Reserved secure stroke Z: 4 mm
FY6
  • Clamping force (25MP): 60 kn
  • Stroke X: 8 mm
  • Clamping stroke Y: 4 mm
  • Reserved secure stroke Z: 4 mm
FY10
  • Clamping force (25MP): 100 kn
  • Stroke X: 8 mm
  • Clamping stroke Y: 3 mm
  • Reserved secure stroke Z: 5 mm
FY16
  • Clamping force (25MP): 160 kn
  • Stroke X: 8 mm
  • Clamping stroke Y: 3 mm
  • Reserved secure stroke Z: 5 mm
FY25
  • Clamping force (25MP): 250 kn
  • Stroke X: 8 mm
  • Clamping stroke Y: 3 mm
  • Reserved secure stroke Z: 5 mm
Type Clamping force(25MP) Whole stroke Clamping stroke Reserved secure stroke Hydraulic clamping cylinder volume Weight
KN mm mm mm cm3 kg
FY2 20 8 4 4 6.5 2
FY4 40 8 3 5 15 4
FY6 60 8 3 5 22 6
FY10 100 8 5 5 33 8
FY16 160 8 5 5 55 10
FY25 250 8 5 5 85 18

Type selection
Users can choose the corresponding clamp type and number according to your equipment needs.

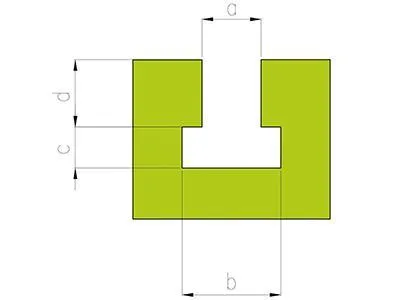

Type of the hydraulic clamping system a(H7) b c d
FW2 FW2-S FY2 18 30+20 14+10 19±0.2
FW4 FW4-S FY4 22 36+20 16+10 25±0.2
FW6 FW6-S FY6 22 36+20 16+10 25±0.2
FW10 FW10-S FY10 22 36+20 16+10 25±0.2
FW16 FW16-S FY16 28 46+20 20+20 32±0.2
FW25 FW25-S FY25 36 60+20 30+20 41±0.2
FW50 FW50-S / 42 68+20 30+20 47±0.2

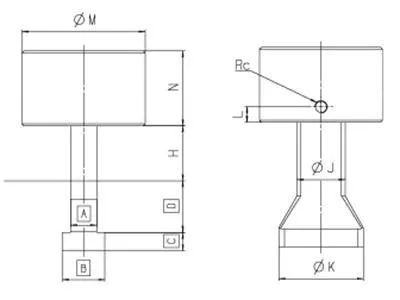

Dimensions
Hydraulic Clamp System, FY Series
Specification M N Rc L J K H(Standard)
FW2 50 55 1/8 12 18 38 25
FW4 76 65 1/4 15 25 55 30
FW6 80 70 1/4 15 30 64 30
FW10 100 75 1/4 15 40 78 40
FW16 130 80 1/4 15 50 88 50
FW25 150 105 1/4 15 60 98 50

Note: H is the thickness of mold base plates that are paired with standard hydraulic clamps. Customization is available upon request.

Features
  • Electrical system equipped with an OMROM programmable controller, ensuring a user-friendly interface and multi-layer safety protection.
