Die Spotting Press, YC High Precision Series

Die Spotting Press, YC High Precision Series

A reasonably designed die spotting press makes the inspection and repair of complex molds much easier.

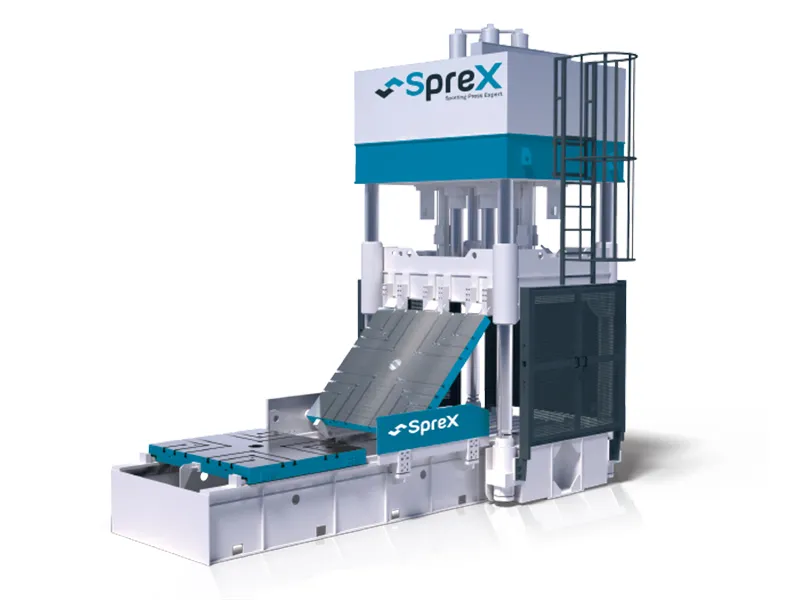

The YC die spotting press features a high precision, and is equipped with four spotting oil cylinders arranged in a square. This ensures a more uniform mold plate force, and a smaller deformation coefficient. All of these are not things found in a traditional spotting machine where the spotting oil cylinders are arranged in a line.

We provide 9 types of die spotting presses, with the pressure ranging from 68T to 600T, thus ensuring they can handle multiple mold types, including die casting molds, injection molds, stamping molds and more.

Request a Quote
Type selection

According to different pressure capacities, we offer 11 different machine types, with a size varying from 80T to 800T. The mixed mold size they can process is 1.5m×1.2m.

Die spotting presses are large scale equipment. A small die spotting press requires less land, and stands at a height of less than 4m. However, the largest option features a length and height close to 10 meters. Therefore customers must pay attention to their requirements and space when choosing an equipment piece.

SX80YC
  • Pressing capacity: 80ton
  • Mold open capacity: 22ton
  • Overturn capacity: 2.5ton
  • Ejecting capacity: 2.2ton
SX120YC
  • Pressing capacity: 120ton
  • Mold open capacity: 25ton
  • Overturn capacity: 4ton
  • Ejecting capacity: 2.2ton
SX160YC
  • Pressing capacity: 160ton
  • Mold open capacity: 38ton
  • Overturn capacity: 8ton
  • Ejecting capacity: 6.3ton
SX200YC
  • Pressing capacity: 200ton
  • Mold open capacity: 45ton
  • Overturn capacity: 10ton
  • Ejecting capacity: 6.3ton
SX260YC
  • Pressing capacity: 260ton
  • Mold open capacity: 50ton
  • Overturn capacity: 10ton
  • Ejecting capacity: 6.3ton
SX300YC
  • Pressing capacity: 300ton
  • Mold open capacity: 56ton
  • Overturn capacity: 18ton
  • Ejecting capacity: 6.3ton
SX350YC
  • Pressing capacity: 350ton
  • Mold open capacity: 70ton
  • Overturn capacity: 25ton
  • Ejecting capacity: 11.2ton
SX400YC
  • Pressing capacity: 400ton
  • Mold open capacity: 80ton
  • Overturn capacity: 25ton
  • Ejecting capacity: 11.2ton
SX500YC
  • Pressing capacity: 500ton
  • Mold open capacity: 120ton
  • Overturn capacity: 30ton
  • Ejecting capacity: 21.5ton
SX600YC
  • Pressing capacity: 600ton
  • Mold open capacity: 150ton
  • Overturn capacity: 35ton
  • Ejecting capacity: 21.5ton
SX800YC
  • Pressing capacity: 800ton
  • Mold open capacity: 190ton
  • Overturn capacity: 105ton
  • Ejecting capacity: 21.5ton
SX1000YC
  • Pressing capacity: 1000ton
  • Mold open capacity: 250ton
  • Overturn capacity: 105ton
  • Ejecting capacity: 21.5ton
SX1200YC
  • Pressing capacity: 1200ton
  • Mold open capacity: 400ton
  • Overturn capacity: 150ton
  • Ejecting capacity: /ton

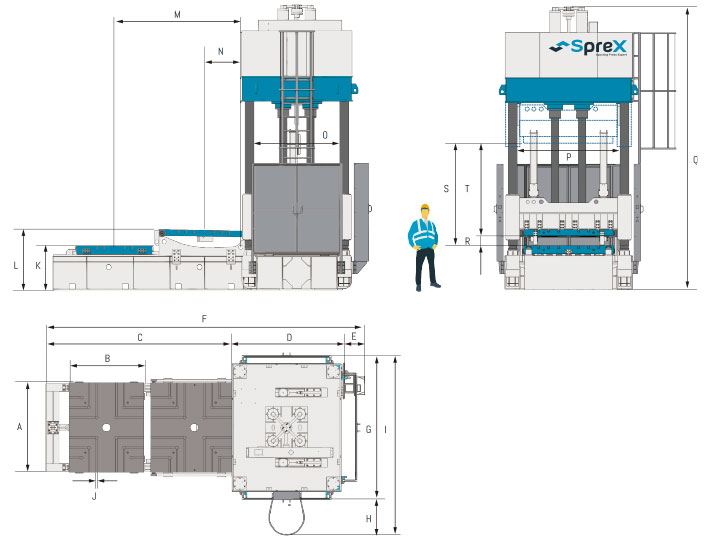

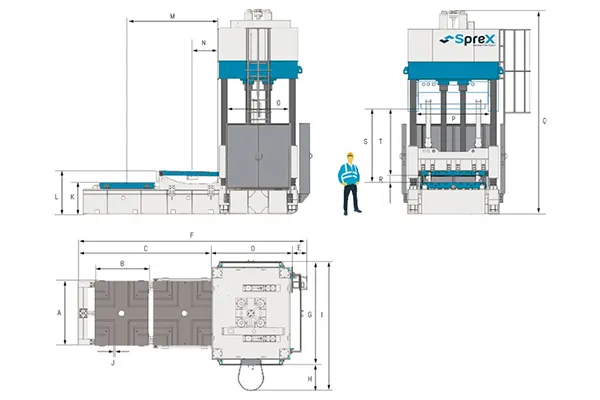

Installation Dimensions
Die Spotting Press, YC High Precision Series
Die Spotting Press, YC High Precision Series
Technical parameter
Items Model SX80YC SX120YC SX160YC SX200YC SX260YC SX300YC SX350YC SX400YC SX500YC SX600YC SX800YC SX1000YC SX1200YC
A 1000 1400 1300 1800 2000 2200 2800 3000 3100 3500 4200 5000 6500
B 800 1100 1300 1500 1600 1800 2200 2000 2100 2500 3500 4200 4600
C 2320 3080 3320 3730 3740 4410 4880 4840 4940 5945 8485 9215 10015
D 1270 1720 2000 2200 2200 2680 2880 2960 3160 3560 4560 5220 5620
E 595 580 430 430 430 610 610 320 320 320 470 475 475
F 4180 5380 5750 6360 6370 7700 8370 8120 8420 9825 13515 14910 16110
G 1850 2395 2680 2880 3080 3510 4110 4390 4550 5000 5940 6820 8590
H 765 765 765 765 765 715 715 715 715 715 715 715 715
I 2615 3160 3425 3625 3845 4225 4826 5105 5265 5715 6655 7535 9305
J 22 22 28 28 28 36 36 36 36 36 42 42 42
K 570 715 805 875 875 985 1035 1085 1155 1275 1610 1665 1665
L 775 995 1085 1175 1175 1305 1580 1625 1730 1875 1995 2184 2184
M 1485 2090 2210 2520 2520 3025 3360 3320 3370 4180 6120 6590 7140
N 440 670 640 750 750 910 1030 990 990 1350 1790 2130 2330
O 940 1280 1500 1700 1700 2060 2260 2260 2400 2800 3720 4300 4700
P 1210 1645 1860 2060 2260 2550 3150 3340 3470 3900 4600 5400 6900
Q 3690 4630 5240 5695 5780 6860 7205 7405 8525 9275 11855 12300 13400
R 150 200 200 200 200 200 400 400 400 400 100 100 100
S 1150 1500 1700 1900 1900 2300 2500 2500 3000 3200 4000 4300 4700
T 1000 1300 1500 1700 1700 2100 2100 2100 2600 2800 3900 4200 4600

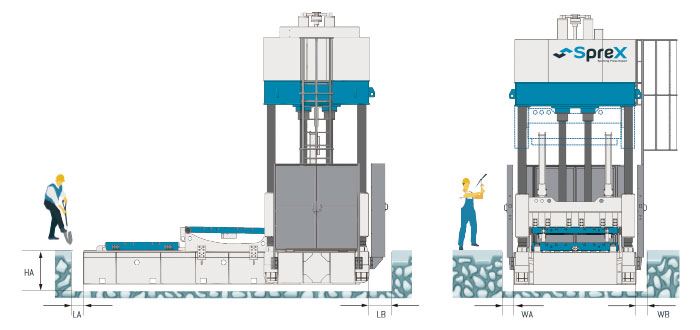

HA 500 670 750 800 800 900 900 1100 1100 1100 1750 1450 1450
LA 800 800 800 800 800 1000 1000 1000 1000 1000 1000 1000 1000
LB 800 800 800 800 800 1000 1000 1000 1000 1000 1000 1000 1000
WA 800 800 800 800 800 1000 1000 1000 1000 1000 1000 1000 1000
WB 800 800 800 800 800 1000 1000 1000 1000 1000 1000 1000 1000
Features
  • Designed with a guide pillar structure, ensuring higher precision during high-pressure mold closure and easier adjustment of platen parallelism.
  • All moving parts are equipped with graphite copper sleeve guides for oil-free and self-lubricating operation, promoting cleanliness and environmental friendliness.
  • Equipped with practical and reliable fault detection, alarm systems, and low-pressure mold protection function.
  • The lower worktable is equipped with high-precision positioning and lifting devices, enhancing operational efficiency.
  • Features four mold clamping cylinders, distributing force evenly during high-pressure mold closure and minimizing deformation coefficient.
  • The movement of the moving platen is detected using the precise SIKO magnetic band from Germany, ensuring accurate positioning.
  • Includes mechanical safety protection devices to safeguard your molds and machines.
Components of Die Spotting Press
Reliable work

During the spotting process, operators need to simply place two molds on the rolling bolster and upper platen, respectively. When the molds are fixed in place using a hydraulic clamping system, the equipment will begin to operate. The rolling bolster moves forward, while at the same time, the upper platen moves upwards and reverses to 180 degrees. By doing so, the two piece mold will effectively complete spotting in their positions.

High spotting precision

Four guide pillars ensure the entire unit is stable and reliable, and the parallel position of the mold can be adjusted simply by shifting the guide pillar nut positions, thus ensuring a high spotting precision. We also use an elastic mold plate to guarantee the high spotting precision under a high pressure.

Complete protective measures

Once the rolling bolster returns to its original position, our hydraulic machinery safety will attach and lock it automatically, which makes mold and machinery operation safer and more secure.

Optional device
Servo drive system

Serve driving using an optional servo motor can help reduce the die spotting press' oil temperature and energy consumption.

Magnetic mold plate

Magnetic mold plates can be used in conjunction with the die spotting press in order to achieve a reliable and fast die change.

Hydraulic clamping system

We offer a variety of hydraulic clamping systems that match the die spotting press, thus helping customers achieve a fast, reliable die change.
