Gantry Type Die Spotting Press | Die Spotting Machine

Type selection

According to different pressure capacities, we provide 8 different types of machines which vary from 68T to 500T. The floor area of this whole equipment is between 4.42m² - 31.32m², you need take your plant layout into consideration when choosing the right equipment.

Technical parameter

68T-200T Die Spotting Press

Items Model		SX1008-68C	SX1411-100C	SX1613-160C	SX1815-200C
Pressure capacity	T	68	100	160	200
Lifting capacity	T	18	28	40	50
Overturn capacity	T	2.5	4	8	10
Ejecting capacity	T	2.2	2.2	6.3	6.3
Dimension of work bench	T	1000×800	1400×1100	1600×1300	1800×1500
Opening stroke of upper workbench	mm	1000	1300	1600	1800
Shift-out stroke of lower workbench	mm	1840	2500	2940	2940
Ejection shroke	mm	65	65	250	250
Overturn angle of upper workbench	°	180	180	180	180
Maximum weight of mould	T	4	8	16	20
External dimension (length x width x high)	mm	2600×1700×3900	4300×2350×5100	4950×2850×5800	5800×3000×6100
Weight	T	8	18	25	30

300T-500T Die Spotting Press

Items Model		SX2017-300C	SX2618-360C	SX3020-400C	SX3121-500C
Pressure capacity	T	300	360	400	500
Lifting capacity	T	65	90	120	120
Overturn capacity	T	12.5	16	25	30
Ejecting capacity	T	6.3	11.2	16	16
Dimension of work bench	T	2000×1700	2600×1800	3000×2000	3100×2100
Opening stroke of upper workbench	mm	2060	2500	2500	2800
Shift-out stroke of lower workbench	mm	3330	3530	3890	4800
Ejection shroke	mm	250	280	300	300
Overturn angle of upper workbench	°	180	180	180	180
Maximum weight of mould	T	25	32	50	60
External dimension (length x width x high)	mm	6500×3500×7300	6650×4070×7950	7050×4200×8300	7200×4350×8700
Weight	T	48	68	80	100

Note: The technical parameters are subject to change without prior notice.

Features

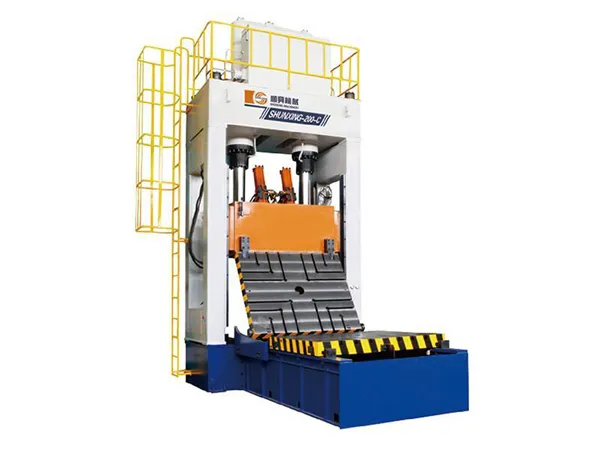

This gantry type die spotting press is a fundamental type, but the design of every detail still highlights our high requirements for spotting equipment.

The whole machine is controlled by specialized computer, and adopts a large size display screen to finish operation.

It adopts MTS digital readout to test the displacement distance for the movable mold base, so the positioning is more precise.

It has function of automatic fault detection and alerts. It has a mold protection function under low pressure spotting.

The edge of the mold plate, lower base and central base are all connected, but in traditional spotting processes, the whole surface is in direct contact with each other. In this way, the spotting precision is increased.

Optional device

Servo drive system

The equipment can be driven by optional servo motor to help reduce the oil temperature and energy consumption of the die spotting press.

Magnetic mold plate

A magnetic mold plate can be used cooperatively with all die spotting presses to realize reliable and fast die change for customers.

Hydraulic clamping system

We can provide an all hydraulic clamping system that can be matched with the die spotting press, which can help customers to realize reliable and fast die changing.
