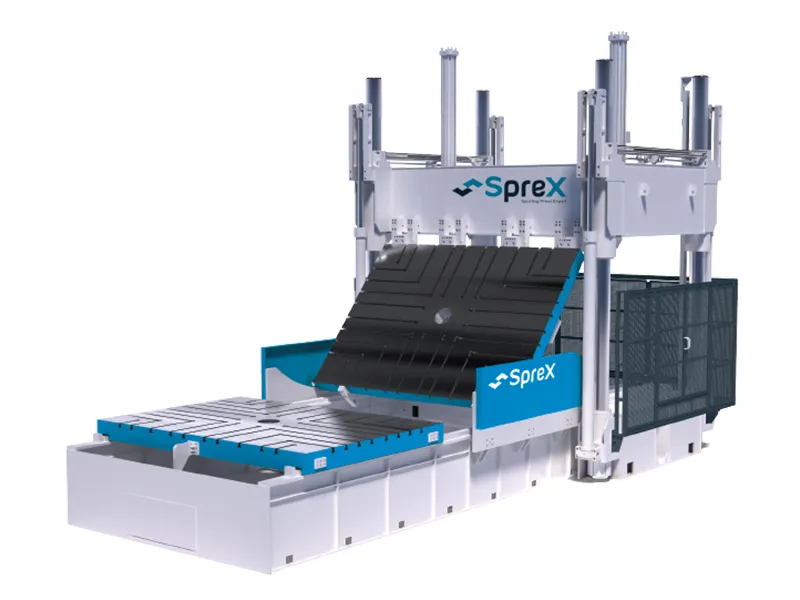

High Precision Spotting Press with Two Plate Clamping
High Precision Spotting Press with Two Plate Clamping
The high precision spotting press with two plate clamping is designed and developed based on the JM series die spotting press.
It completes reliable and stable spotting through the use of four evenly distributed spotting oil cylinders, but it has no upper seats, which decreases the machine height by 15-25% when compared to the JM series die spotting press. For users with a limited amount of height in their factory, this is an ideal piece of equipment.
It is equipped with a locking device to guarantee operation security, so that even if there is a power outage or machine breakdown during operation, the brake device will hold the mold plate back and prevent it from continuous movement.
Request a Quote
Type selection
According to different pressure capacities, we offer 4 different machine types, ranging from 160T to 600T, including equipment where the minimum mold size is only 22tons, a height of 4m, and a working table length of 1.6m, thus increasing the utilization rate of limited space.
SX160YC-II
Pressing capacity: 160 ton
Mold open capacity: 38 ton
Overturn capacity: 8 ton
Ejecting capacity: 6.3 ton
SX300YC-II
Pressing capacity: 300 ton
Mold open capacity: 56 ton
Overturn capacity: 18 ton
Ejecting capacity: 6.3 ton
SX400YC-II
Pressing capacity: 400 ton
Mold open capacity: 80 ton
Overturn capacity: 25 ton
Ejecting capacity: 11.2 ton
SX600YC-II
Pressing capacity: 600 ton
Mold open capacity: 150 ton
Overturn capacity: 35 ton
Ejecting capacity: 21.5 ton

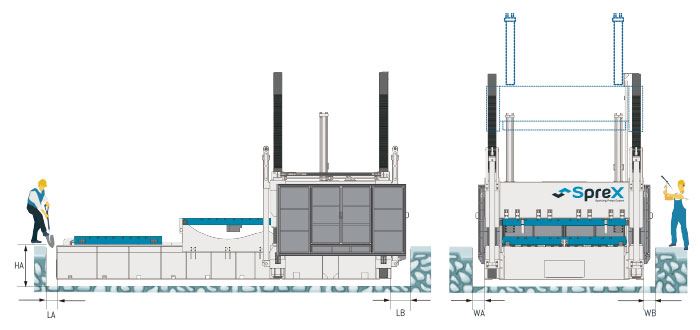

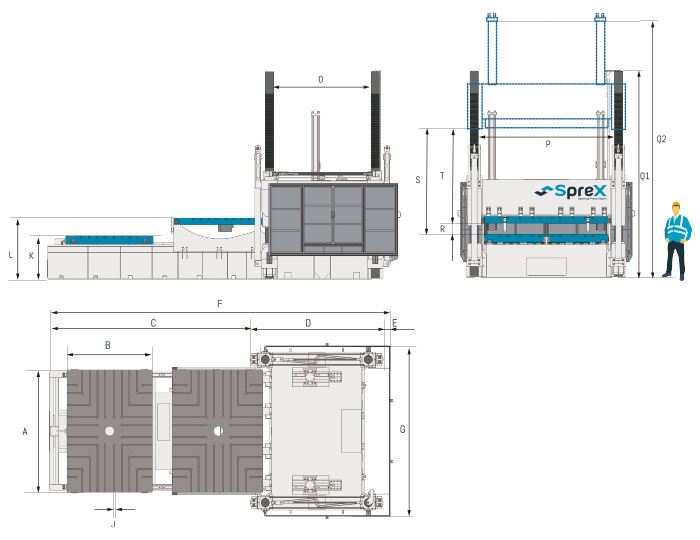

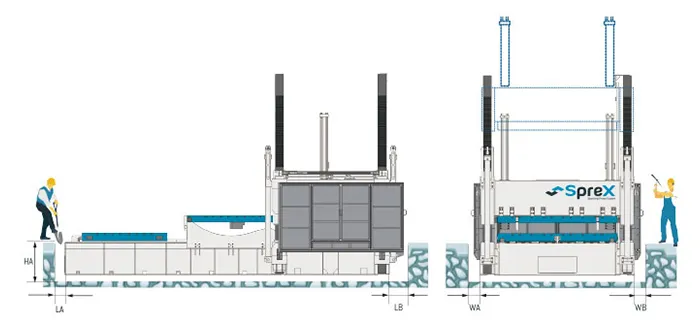

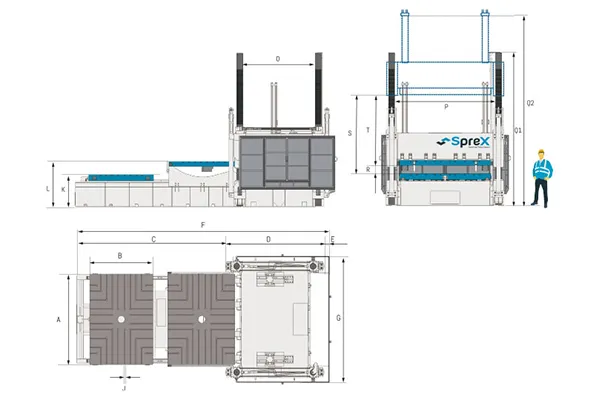

Installation Dimensions
Technical parameter
Items Model
SX160YC-Ⅱ
SX300YC-Ⅱ
SX400YC-Ⅱ
SX600YC-Ⅱ
pressure capacity
T
160
300
400
600
Upper workbench lift capacity
T
38
56
80
150
Overturn capacity of upper workbench
T
8
18
25
35
Ejecting capacity
T
6.3
6.3
11.2
21.5
Min mold thickness
mm
300
600
600
800
Max mold thickness
mm
1000
1600
2000
2800
Maximum distance between two workbenches
mm
1700
2300
2700
3500
Overturn angle of upper workbench
°
180
180
180
180
Dimension of workbench
mm
1600×1300
2000×1800
3000×2000
4000×2800
Carrying capacity of workbench
T
16
36
50
70
Shift-out stroke of lower workbench
mm
3200
2750
4800
6800
Ejection stroke
mm
300
300
300
350
Power of motor
kW
18.5
30
45
55
Min mold size (L×W)
mm
460×690
600×750
810×780
2100×1015
External dimension (length×width×high)
mm
6500×2790×4370
6010×5145×5850
8300×4480×6460
11250×5590×8500
Overall Dimension (out of operation)
mm
6500×2790×3610
6010×5145×4550
8300×4480×5130
8300×4480×5130
Weight
T
22
45
80
125
Note: The technical parameters are subject to change without prior notice.
Features
Designed with a reliable guide pillar structure, allowing for higher precision during high-pressure mold closure and convenient platen parallelism adjustment.
All moving parts are equipped with graphite copper sleeve guides, enabling oil-free and self-lubricating operation for a cleaner and more environmentally friendly machine.
Incorporates practical and reliable fault detection, alarm systems, and low-pressure mold protection function for enhanced safety and performance.
Equipped with a lower worktable featuring high-precision positioning and lifting devices, further improving operational efficiency.
Features four mold clamping cylinders, ensuring even force distribution during high-pressure mold closure and minimizing deformation coefficient.
Utilizes German-made SIKO magnetic band for precise detection of the moving platen's position, guaranteeing accurate results.
The reduced machine height by 15-25% compared to the JM series solves the issue of limited factory height, providing optimal space utilization.
Optional device
Servo drive system
Serve driving using an optional servo motor can help reduce the die spotting press' oil temperature and energy consumption.
Magnetic mold plate
Magnetic mold plates can be used in conjunction with the die spotting press in order to achieve a reliable and fast die change.
Hydraulic clamping system
We offer a variety of hydraulic clamping systems that match the die spotting press, thus helping customers achieve a fast, reliable die change.
