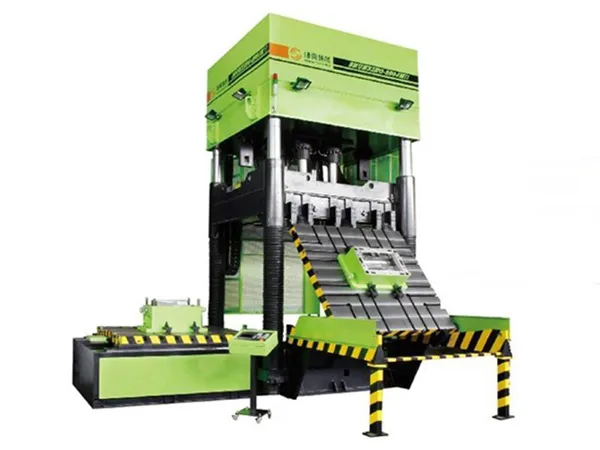

All die spotting press produced by Shunxing feature an optional servo motor to realize servo driving, which can greatly reduce oil temperature and oil consumption. This servo energy saving die spotting press is improved based on the JM series. Its combination properties are higher, so this type is very popular.
According to different pressure capacities, we provide 9 kinds of machines which vary from 68T to 528T, so they can satisfy the requirements of different industrial users for different sized molds.
68T-300T Die Spotting Press
| Items Model | T | SX68JM-II | SX100JM-II | SX160JM-II | SX200JM-II | SX300JM-II |
| pressure capacity | T | 68 | 100 | 160 | 200 | 300 |
| Open capacity | T | 22 | 25 | 38 | 45 | 56 |
| Overturn capacity | T | 2.5 | 4 | 8 | 10 | 18 |
| Ejecting capacity | T | 2.2 | 2.2 | 6.3 | 6.3 | 6.3 |
| Dimension of work bench | mm | 1000×800 | 1400×1100 | 1600×1300 | 1800×1500 | 2200×1800 |
| Carrying capacity of workbench | T | 4 | 8 | 16 | 20 | 36 |
| minimum distance between two workbenches | mm | 150 | 200 | 200 | 200 | 200 |
| maximum distance between two workbenches | mm | 1150 | 1500 | 1700 | 1900 | 2300 |
| shift-out stroke of lower workbench | mm | 1260 | 1740 | 1980 | 2180 | 2700 |
| Ejection stroke | mm | 50 | 65 | 250 | 250 | 250 |
| Overturn angle of upper workbench | ° | 180 | 180 | 180 | 180 | 180 |
| Maximum weight of mould | T | 4 | 8 | 16 | 20 | 36 |
| External dimension (length×width×high) | mm | 2950×2820×3600 | 4000×3850×4750 | 4600×4000×5100 | 5000×4300×5600 | 6200×5300×6700 |
| Weight | T | 9.2 | 18 | 25 | 30 | 50 |
350T-528T Die Spotting Press
| Items Model | T | SX350JM-II | SX400JM-II | SX500JM-II | SX528JM-II |
| pressure capacity | T | 350 | 400 | 500 | 528 |
| Open capacity | T | 70 | 80 | 120 | 150 |
| Overturn capacity | T | 25 | 25 | 30 | 35 |
| Ejecting capacity | T | 11.2 | 11.2 | 21.5 | 21.5 |
| Dimension of work bench | mm | 2800×2000 | 3000×2000 | 3100×2100 | 3500×2500 |
| Carrying capacity of workbench | T | 50 | 50 | 60 | 70 |
| minimum distance between two workbenches | mm | 400 | 400 | 400 | 400 |
| maximum distance between two workbenches | mm | 2500 | 2500 | 3000 | 3200 |
| shift-out stroke of lower workbench | mm | 3295 | 3500 | 3680 | 4120 |
| Ejection stroke | mm | 280 | 300 | 300 | 300 |
| Overturn angle of upper workbench | ° | 180 | 180 | 180 | 180 |
| Maximum weight of mould | T | 50 | 50 | 60 | 70 |
| External dimension (length×width×high) | mm | 7200×5670×7400 | 7600×5880×7340 | 7905×5670×8000 | 8500×6400×9300 |
| Weight | T | 73 | 85 | 110 | 130 |
Note: The technical parameters are subject to change without prior notice.
High spotting precision
Uniform spotting force
The equipment can be driven by optional servo motor to help reduce the oil temperature and energy consumption of the die spotting press.
A magnetic mold plate can be used cooperatively with all die spotting presses to realize reliable and fast die change for customers.
